multi-conductor 250V

FEP + PVC MT--- / MV---

FEP + PVC MT--- / MV---

Wyślij do znajomego

Drukuj

Model MT--- / MV---

MT--- / MV---

1992

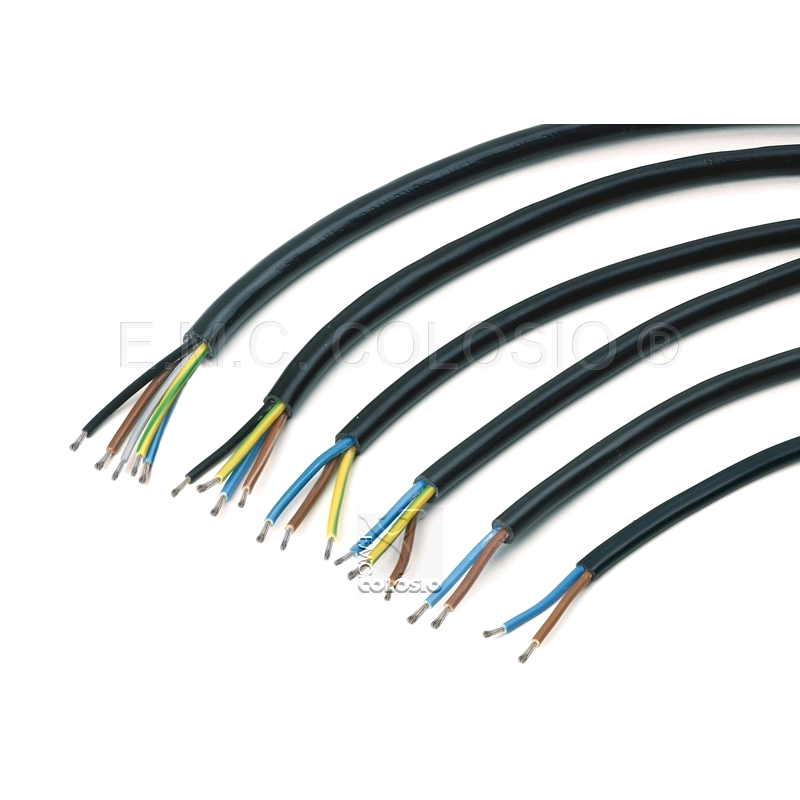

Type of cable insulation:	FEP + PVC multi-conductor 250V
Working temperature of the sheath:	T90°C
Working temperature inner cores:	T180°C
Type of strand:	Copper tin-plated flexible
Working voltage:	300/300V
Inner cores approval:	VDE Reg. Nr.

Code	Sections / AWG:	Colours of the cores	Diameters / Dimensions (mm):
MT27-	2 x 0.75 mm²	LM	4.7	::MT27-::	MT27-\|4.7\|\|2\|LM\|NB
MTP7-	2 x 0.75 mm²	LM	4.7 x 3.0	::MTP7-::	MTP7-\|4.7 x 3.0\|\|2\|LM\|NB
MV37-	3 x 0.75 mm²	LMG	5.1	::MV37-::	MV37-\|5.1\|\|3\|LMG\|NB
MVT7-	3 x 0.75 mm²	LMN	5.1	::MVT7-::	MVT7-\|5.1 \|\|3\|LMN\|NB
MV47-	4 x 0.75 mm²	LMNG	6.0	::MV47-::	MV47-\|6.0\|\|4\|LMNG\|NB
MVQ7-	4 x 0.75 mm²	LMNE	6.0	::MVQ7-::	MVQ7-\|6.0\|\|4\|LMNE\|NB
MV57-	5 x 0.75 mm²	LMNEG	6.3	::MV57-::	MV57-\|6.3\|\|5\|LMNEG\|NB
MV77-	7 x 0.75 mm²	LMNERBG	6.8	::MV77-::	MV77-\|6.8\|\|7\|LMNERBG\|NB

Available colours:

B - White
N - Black
Other colours on request

Colours of the cores

L = Blue
M = Brown
G = Yellow/Green
N = Black
E = Grey
R = Red
B = White
